2014年11月

wps这么一推送,又是多少事故

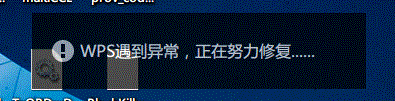

打开wps就崩溃,看看啥原因呗,为了防止被它的异常上报程序捕获,首先先挂上调试器

(1e60.1a6c): Access violation - code c0000005 (first chance)
First chance exceptions are reported before any exception handling.
This exception may be expected and handled.
*** ERROR: Symbol file could not be found.  Defaulted to export symbols for D:\Program Files (x86)\Kingsoft\WPS Office\9.1.0.4867\office6\officespace.DLL -
eax=00000000 ebx=00000011 ecx=0036ee80 edx=003428c3 esi=776a8ad0 edi=00000000
eip=7748f3c4 esp=09b3fd00 ebp=09b3fd0c iopl=0         nv up ei pl nz na po nc
cs=0023  ss=002b  ds=002b  es=002b  fs=0053  gs=002b             efl=00010202
officespace!KActiveLoginInfoCache::vipUrl+0x9e8:
7748f3c4 8b480c          mov     ecx,dword ptr [eax+0Ch] ds:002b:0000000c=????????

看看栈

0:017> kvn
 # ChildEBP RetAddr  Args to Child
WARNING: Stack unwind information not available. Following frames may be wrong.
00 09b3fd0c 7749235b acc53f64 00000000 09b3fd8c officespace!KActiveLoginInfoCache::vipUrl+0x9e8
01 09b3fd40 77491f93 09b3fd5c acc53f74 06b50300 officespace!KActiveLoginInfoCache::vipUrl+0x397f
02 09b3fd74 774996cf acc53f9c 06b50220 06b50300 officespace!KActiveLoginInfoCache::vipUrl+0x35b7
*** ERROR: Symbol file could not be found.  Defaulted to export symbols for D:\Program Files (x86)\Kingsoft\WPS Office\9.1.0.4867\office6\QtCore4.dll -
03 09b3fdb8 668fb948 00000000 00000000 09b3fe00 officespace!KActiveLoginInfoCache::vipUrl+0xacf3
04 09b3fdc8 57b7c556 06b50300 acb26a30 00000000 QtCore4!QThread::setPriority+0x25d
05 09b3fe00 57b7c600 00000000 09b3fe18 76a0338a MSVCR100!_endthreadex+0x3f (FPO: [Non-Fpo])
06 09b3fe0c 76a0338a 06cc4178 09b3fe58 771c9f72 MSVCR100!_endthreadex+0xce (FPO: [Non-Fpo])
07 09b3fe18 771c9f72 06cc4178 2660fcd4 00000000 kernel32!BaseThreadInitThunk+0xe (FPO: [Non-Fpo])
08 09b3fe58 771c9f45 57b7c59c 06cc4178 00000000 ntdll!__RtlUserThreadStart+0x70 (FPO: [Non-Fpo])
09 09b3fe70 00000000 57b7c59c 06cc4178 00000000 ntdll!_RtlUserThreadStart+0x1b (FPO: [Non-Fpo])

看看出错的东西是哪儿来的吧

7748f3a7 55              push    ebp
7748f3a8 8bec            mov     ebp,esp
7748f3aa 51              push    ecx
7748f3ab 53              push    ebx
7748f3ac 57              push    edi
7748f3ad 8d45fc          lea     eax,[ebp-4]
7748f3b0 50              push    eax
7748f3b1 ff1518e45b77    call    dword ptr [officespace!KQingClient::trUtf8+0x7a638 (775be418)]
7748f3b7 8d4dfc          lea     ecx,[ebp-4]
7748f3ba ff151ce45b77    call    dword ptr [officespace!KQingClient::trUtf8+0x7a63c (775be41c)]
7748f3c0 8bd8            mov     ebx,eax
7748f3c2 8b06            mov     eax,dword ptr [esi]
0:017> ?(.-7748f3a7)
Evaluate expression: 29 = 0000001d
0:017> r
eax=00000000 ebx=00000011 ecx=0036ee80 edx=003428c3 esi=776a8ad0 edi=00000000
eip=7748f3c4 esp=09b3fd00 ebp=09b3fd0c iopl=0         nv up ei pl nz na po nc
cs=0023  ss=002b  ds=002b  es=002b  fs=0053  gs=002b             efl=00010202
officespace!KActiveLoginInfoCache::vipUrl+0x9e8:
7748f3c4 8b480c          mov     ecx,dword ptr [eax+0Ch] ds:002b:0000000c=????????
0:017> ?(0x9e8-0x1d)
Evaluate expression: 2507 = 000009cb
0:017> x officespace!KActiveLoginInfoCache::vipUrl+000009cb

那就是这里了,断下重启,

Breakpoint 0 hit
eax=0b1cf83c ebx=00000000 ecx=0b1cf864 edx=00d40174 esi=05fc8ad0 edi=00000000
eip=05daf3a7 esp=0b1cf818 ebp=0b1cf848 iopl=0         nv up ei pl nz na po nc
cs=0023  ss=002b  ds=002b  es=002b  fs=0053  gs=002b             efl=00000202
officespace!KActiveLoginInfoCache::vipUrl+0x9cb:
05daf3a7 55              push    ebp
0:017> dd esi
05fc8ad0  00000000 00000001 05f5c5e4 06fefc48
05fc8ae0  00000000 00000000 00000000 66d13d90
05fc8af0  00000000 66d13d90 66d13d90 00000000
05fc8b00  66d13d90 66d13d90 00000000 66d13d90
05fc8b10  66d13d90 66d13d90 66d13d90 66d13d90
05fc8b20  00000000 66d13d90 66d13d90 66d13d90
05fc8b30  66d11874 00000000 66d13d90 00000000
05fc8b40  66d13d90 66d13d90 00000000 00000001
0:017> p
eax=0b1cf83c ebx=00000000 ecx=0b1cf864 edx=00d40174 esi=05fc8ad0 edi=00000000
eip=05daf3a8 esp=0b1cf814 ebp=0b1cf848 iopl=0         nv up ei pl nz na po nc
cs=0023  ss=002b  ds=002b  es=002b  fs=0053  gs=002b             efl=00000202
officespace!KActiveLoginInfoCache::vipUrl+0x9cc:
05daf3a8 8bec            mov     ebp,esp
0:017>
eax=0b1cf83c ebx=00000000 ecx=0b1cf864 edx=00d40174 esi=05fc8ad0 edi=00000000
eip=05daf3aa esp=0b1cf814 ebp=0b1cf814 iopl=0         nv up ei pl nz na po nc
cs=0023  ss=002b  ds=002b  es=002b  fs=0053  gs=002b             efl=00000202
officespace!KActiveLoginInfoCache::vipUrl+0x9ce:
05daf3aa 51              push    ecx
0:017>
eax=0b1cf83c ebx=00000000 ecx=0b1cf864 edx=00d40174 esi=05fc8ad0 edi=00000000
eip=05daf3ab esp=0b1cf810 ebp=0b1cf814 iopl=0         nv up ei pl nz na po nc
cs=0023  ss=002b  ds=002b  es=002b  fs=0053  gs=002b             efl=00000202
officespace!KActiveLoginInfoCache::vipUrl+0x9cf:
05daf3ab 53              push    ebx
0:017>
eax=0b1cf83c ebx=00000000 ecx=0b1cf864 edx=00d40174 esi=05fc8ad0 edi=00000000
eip=05daf3ac esp=0b1cf80c ebp=0b1cf814 iopl=0         nv up ei pl nz na po nc
cs=0023  ss=002b  ds=002b  es=002b  fs=0053  gs=002b             efl=00000202
officespace!KActiveLoginInfoCache::vipUrl+0x9d0:
05daf3ac 57              push    edi
0:017>
eax=0b1cf83c ebx=00000000 ecx=0b1cf864 edx=00d40174 esi=05fc8ad0 edi=00000000
eip=05daf3ad esp=0b1cf808 ebp=0b1cf814 iopl=0         nv up ei pl nz na po nc
cs=0023  ss=002b  ds=002b  es=002b  fs=0053  gs=002b             efl=00000202
officespace!KActiveLoginInfoCache::vipUrl+0x9d1:
05daf3ad 8d45fc          lea     eax,[ebp-4]
0:017>
eax=0b1cf810 ebx=00000000 ecx=0b1cf864 edx=00d40174 esi=05fc8ad0 edi=00000000
eip=05daf3b0 esp=0b1cf808 ebp=0b1cf814 iopl=0         nv up ei pl nz na po nc
cs=0023  ss=002b  ds=002b  es=002b  fs=0053  gs=002b             efl=00000202
officespace!KActiveLoginInfoCache::vipUrl+0x9d4:
05daf3b0 50              push    eax
0:017>
eax=0b1cf810 ebx=00000000 ecx=0b1cf864 edx=00d40174 esi=05fc8ad0 edi=00000000
eip=05daf3b1 esp=0b1cf804 ebp=0b1cf814 iopl=0         nv up ei pl nz na po nc
cs=0023  ss=002b  ds=002b  es=002b  fs=0053  gs=002b             efl=00000202
officespace!KActiveLoginInfoCache::vipUrl+0x9d5:
*** ERROR: Symbol file could not be found.  Defaulted to export symbols for D:\Program Files (x86)\Kingsoft\WPS Office\9.1.0.4867\office6\QtCore4.dll -
05daf3b1 ff1518e4ed05    call    dword ptr [officespace!KQingClient::trUtf8+0x7a638 (05ede418)] ds:002b:05ede418={QtCore4!QDateTime::time (665bffde)}
0:017>
eax=0b1cf810 ebx=00000000 ecx=03ddee82 edx=00d40174 esi=05fc8ad0 edi=00000000
eip=05daf3b7 esp=0b1cf808 ebp=0b1cf814 iopl=0         nv up ei pl nz na po nc
cs=0023  ss=002b  ds=002b  es=002b  fs=0053  gs=002b             efl=00000202
officespace!KActiveLoginInfoCache::vipUrl+0x9db:
05daf3b7 8d4dfc          lea     ecx,[ebp-4]
0:017>
eax=0b1cf810 ebx=00000000 ecx=0b1cf810 edx=00d40174 esi=05fc8ad0 edi=00000000
eip=05daf3ba esp=0b1cf808 ebp=0b1cf814 iopl=0         nv up ei pl nz na po nc
cs=0023  ss=002b  ds=002b  es=002b  fs=0053  gs=002b             efl=00000202
officespace!KActiveLoginInfoCache::vipUrl+0x9de:
05daf3ba ff151ce4ed05    call    dword ptr [officespace!KQingClient::trUtf8+0x7a63c (05ede41c)] ds:002b:05ede41c={QtCore4!QTime::hour (665bf3d9)}
0:017>
eax=00000012 ebx=00000000 ecx=0036ee80 edx=00012982 esi=05fc8ad0 edi=00000000
eip=05daf3c0 esp=0b1cf808 ebp=0b1cf814 iopl=0         nv up ei pl nz na pe nc
cs=0023  ss=002b  ds=002b  es=002b  fs=0053  gs=002b             efl=00000206
officespace!KActiveLoginInfoCache::vipUrl+0x9e4:
05daf3c0 8bd8            mov     ebx,eax
0:017>
eax=00000012 ebx=00000012 ecx=0036ee80 edx=00012982 esi=05fc8ad0 edi=00000000
eip=05daf3c2 esp=0b1cf808 ebp=0b1cf814 iopl=0         nv up ei pl nz na pe nc
cs=0023  ss=002b  ds=002b  es=002b  fs=0053  gs=002b             efl=00000206
officespace!KActiveLoginInfoCache::vipUrl+0x9e6:
05daf3c2 8b06            mov     eax,dword ptr [esi]  ds:002b:05fc8ad0=00000000
0:017>
eax=00000000 ebx=00000012 ecx=0036ee80 edx=00012982 esi=05fc8ad0 edi=00000000
eip=05daf3c4 esp=0b1cf808 ebp=0b1cf814 iopl=0         nv up ei pl nz na pe nc
cs=0023  ss=002b  ds=002b  es=002b  fs=0053  gs=002b             efl=00000206
officespace!KActiveLoginInfoCache::vipUrl+0x9e8:
05daf3c4 8b480c          mov     ecx,dword ptr [eax+0Ch] ds:002b:0000000c=????????

看看这个值哪儿来的?

05db22b1 bed08afc05      mov     esi,offset officespace!KxKuaiPanInfoGetter::staticMetaObject+0x5998 (05fc8ad0)

0:017> dd 05fc8ad0
05fc8ad0  00000000

果然是空指针,往上追溯:

05db22ff 8b0d74ffed05    mov     ecx,dword ptr [officespace!KQingClient::trUtf8+0x7c194 (05edff74)]
...
05db2307 890dd08afc05    mov     dword ptr [officespace!KxKuaiPanInfoGetter::staticMetaObject+0x5998 (05fc8ad0)],ecx

在officespace里面,那么重启,加ba r1:

0:000> sxe ld officespace
0:000> g
ModLoad: 0f3e0000 0f63b000   D:\Program Files (x86)\Kingsoft\WPS Office\9.1.0.4867\office6\officespace.DLL
eax=00000000 ebx=00000000 ecx=00000000 edx=00000000 esi=7efdd000 edi=0032edf4
eip=771afc62 esp=0032ecc8 ebp=0032ed1c iopl=0         nv up ei pl zr na pe nc
cs=0023  ss=002b  ds=002b  es=002b  fs=0053  gs=002b             efl=00000246
ntdll!ZwMapViewOfSection+0x12:
771afc62 83c404          add     esp,4
0:000> x officespace!KQingClient::trUtf8
*** ERROR: Symbol file could not be found.  Defaulted to export symbols for D:\Program Files (x86)\Kingsoft\WPS Office\9.1.0.4867\office6\officespace.DLL -
0f4a3d9b          officespace!KQingClient::trUtf8 (<no parameter info>)
0f4a3de0          officespace!KQingClient::trUtf8 (<no parameter info>)
0:000> ba r1 0f4a3d9b+0x7c194 "r;k;g;"
0:000> ba r1 0f4a3de0+0x7c194 "r;k;g;"
0:000> g

结果,大家都知道是为啥了:

eax=66a81874 ebx=00000000 ecx=00000001 edx=00000471 esi=075d42e8 edi=00000000
eip=0f3eb76d esp=0032d188 ebp=0032d1a4 iopl=0         nv up ei pl nz na pe nc
cs=0023  ss=002b  ds=002b  es=002b  fs=0053  gs=002b             efl=00200206
officespace!KxKuaiPanInfoGetter::qt_metacall+0x6483:
0f3eb76d 894610          mov     dword ptr [esi+10h],eax ds:002b:075d42f8=baadf00d

0:017> ln 66a81874
(66a81874)   QtCore4!QListData::shared_null   |  (66a81a40)   QtCore4!QMapData::shared_null
Exact matches:
    QtCore4!QListData::shared_null (<no parameter info>)

SetContext failed, 0x80070005
MachineInfo::SetContext failed - Thread: 04CE8F30  Handle: 840  Id: 4174 - Error == 0x80070005
eax=66a81874 ebx=00000001 ecx=00006379 edx=00006378 esi=66536c1f edi=0f608a18
eip=0f44681f esp=0032d1e0 ebp=0032d204 iopl=0         nv up ei pl nz na po nc
cs=0023  ss=002b  ds=002b  es=002b  fs=0053  gs=002b             efl=00200202
officespace!qt_test_isFetchedRoot+0x1d040:
0f44681f a3548a600f      mov     dword ptr [officespace!KxKuaiPanInfoGetter::staticMetaObject+0x591c (0f608a54)],eax ds:002b:0f608a54=00000000
ChildEBP RetAddr
WARNING: Stack unwind information not available. Following frames may be wrong.
0032d204 0f446765 officespace!qt_test_isFetchedRoot+0x1d040
0032d228 0f48a913 officespace!qt_test_isFetchedRoot+0x1cf86
0032d260 0f3e75f2 officespace!verify+0x18999
0032d26c 664d5bce officespace!KxKuaiPanInfoGetter::qt_metacall+0x2308
